Law Nitrogen Determination in Steel
EMGA-930
Oxygen/Nitrogen/Hydrogen Analyzer

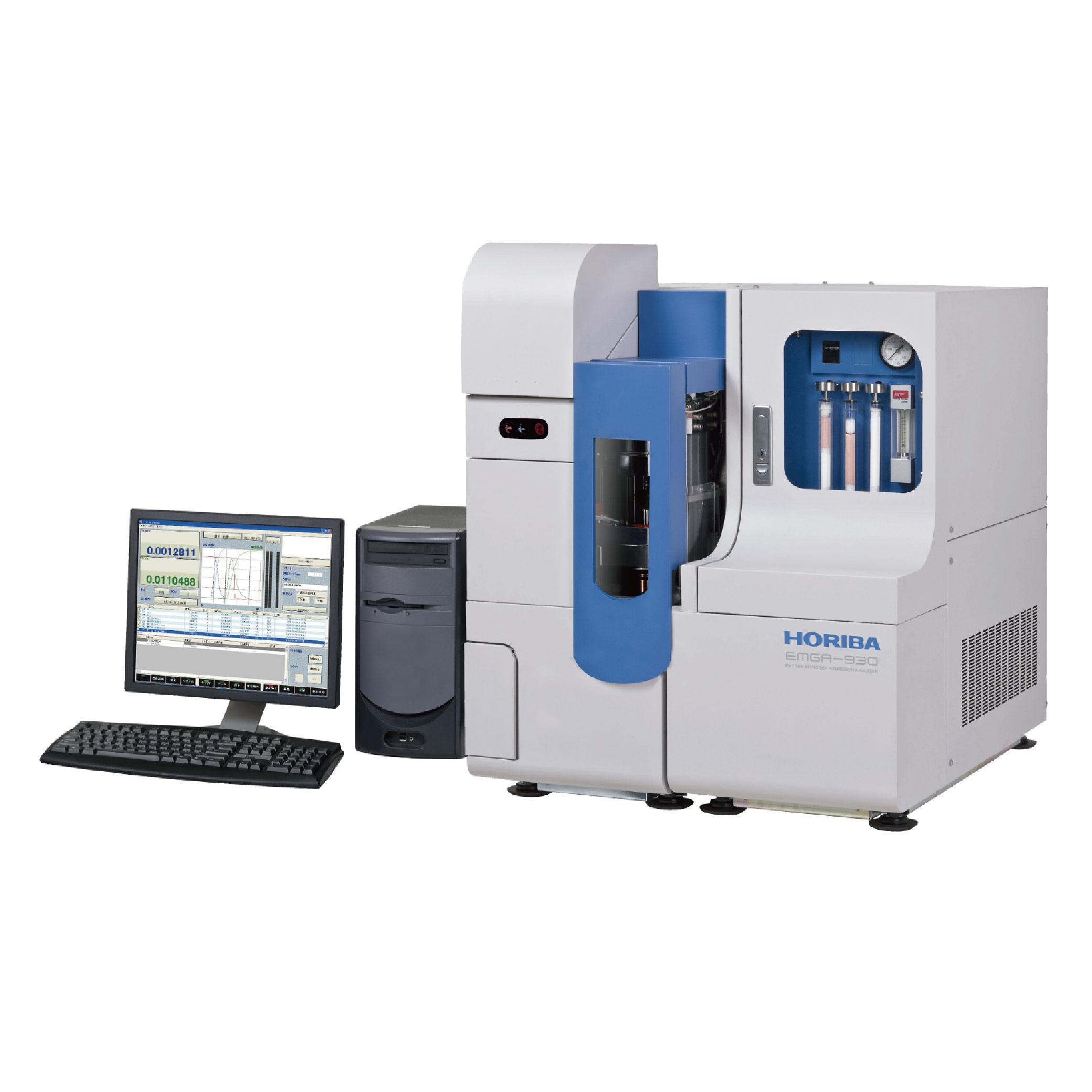

EMGA-930 O/N/H analyzer: It's a "New flagship model” for O/N/H analyzers and user friendly product.
This is a simultaneous oxygen, nitrogen & hydrogen elemental analyzer with high accuracy and repeatability suiting to cutting-edge technology's R&D as well as quality control in the market of steel, new materials, catalyst and so on. This is a new generation model optimized to fit to user's requests.
The oxygen is measured as carbon monoxide and carbon dioxide by two non-dispersive infrared detectors, the nitrogen by a thermal conductivity detector and the hydrogen with non dispersive Infra Red detector as H2O.
Segment: Scientific
Manufacturing Company: HORIBA, Ltd.
Selection of countries and territories where this product is available:
Afghanistan,Albania,Algeria,Andorra,Angola,Antigua and Barbuda,Argentina,Armenia,Australia,Austria,Azerbaijan,Bahamas,Bahrain,Bangladesh,Barbados,Belarus,Belgium,Belize,Benin,Bhutan,Bolivia,Bosnia and Herzegovina,Botswana,Brazil,Brunei,Bulgaria,Burkina Faso,Burundi,Cambodia,Cameroon,Canada,Cape Verde,Cayman Islands,Central African Republic,Chad,Chile,China,Colombia,Comoros,Costa Rica,Cote d'Ivoire,Croatia,Cyprus,Czech,Democratic Republic of the Congo,Denmark,Djibouti,Dominica,Dominican Republic,Ecuador,Egypt,El Salvador,Eritrea,Estonia,Ethiopia,Finland,France,French Guyana,French Polynesia,FYROM (North Macedonia),Gabon,Gambia,Georgia,Germany,Ghana,Greece,Grenada,Guadeloupe,Guatemala,Guinea,Guyana,Haiti,Honduras,Hong Kong SAR of China,Hungary,Iceland,India,Indonesia,Iraq,Ireland,Israel,Italy,Jamaica,Japan,Jordan,Kazakhstan,Kenya,Korea (South),Kosovo,Kuwait,Kyrgiyz Republic,Laos,Latvia,Lebanon,Lesotho,Liberia,Libya,Lichtenstein,Lithuania,Luxembourg,Madagascar,Malawi,Malaysia,Maldives,Mali,Malta,Martinique,Mauritania,Mauritius,Mayotte,Mexico,Moldavia,Monaco,Mongolia,Montenegro,Morocco,Mozambique,Myanmar,Namibia,Nepal,Netherlands,New Caledonia,New Zealand,Nicaragua,Niger,Nigeria,Norway,Oman,Pakistan,Palestine,Panama,Paraguay,Peru,Philippines,Poland,Portugal,Qatar,Republic of the Congo,Reunion,Romania,Russia,Rwanda,Saint Helena,Saint Kitts and Nevis,Sao Tome and Principe,Saudi Arabia,Senegal,Serbia,Seychelles,Sierra Leone,Singapore,Slovakia,Slovenia,Somalia,South Africa,Spain,Sri Lanka,St. Lucia,St. Vincent and the Grenadinas,Sudan,Suriname,Swaziland,Sweden,Switzerland,Taiwan,Tajikistan,Tanzania,Thailand,Togo,Trinidad and Tobago,Tunisia,Turkey,Turkmenistan,Uganda,Ukraine,United Arab Emirates,United Kingdom,Uruguay,Uzbekistan,Venezuela,Vietnam,Yemen,Zambia,Zimbabwe
View the complete list
here.
Principle and Gas flow diagram
The sample is placed in a graphite crucible and the crucible is maintained between the upper and the lower electrode of the impulse furnace. A high current power passes through the crucible to create a high temperature.
The oxide in the sample reacts with the graphite crucible, and is extracted as carbon monoxide (CO), and carried together with the carrier gas. The extracted gas is directly analysed after the dust filter. According to the oxygen concentration, it is determined by CO or CO2 after pass throw oxidizer (Copper Oxide) with a non dispersive Infra-Red analyser (NDIR).
The Hydrogen is determined with a non dispersive Infra Red analyser as H2O after H2 passes through the oxidizer (Copper Oxide).
The Nitrogen in the sample is extracted as nitrogen gas (N2) and its concentration is determined by a thermal conductivity detector (TCD).
Super High Performance
Wide range and high accuracy measurement
*Range: Oxygen:
0-5%, Nitrogen: 0-3%, Hydrogen: 0-0.25%
*Accuracy:
σn-1≦0.3ppm or CV≦1.0% for STD sample
σn-1≦0.02ppm or CV≦0.5% for Reference gas
*Accuracy H:
σn-1≦0.04ppm or RSD≦2.0% for Reference gas
Double detectors of oxygen (CO and CO2), long type cell and optimized design of TCD provide wide range measurements.
Optimization of the signal processing reduces by half the electrical noise compared to conventional model.
Standard
EMGA fulfils requirements of the standard method for analysis of steel titanium, ceramics etc…
EX)
*ISO10720, ISO17053
*JIS G1228
*ASTM E1019, ASTM E1569, ASTM E1409
User-friendly Software
Measurement Window
Simple software allows easy handling.
Extracted gas signals are displayed in real time numerically and also as curves together with temperature level. Graphs are saved automatically.
In the measurement window, sample weight can be registered automatically. Results are saved in a data table for easy management.
HORIBA originality-Maintenance navigator
Maintenance counter informs users at the timing of consumables replacement to keep high accuracy means.
And as navigator describes the easy to understand procedure for the replacing parts, operator can do maintenance works with absolutely no experience and technical knowledge.
EMGA-930: Oxygen/Nitrogen/Hydrogen analyzer
Principle
Oxygen: Non Dispersive Infrared detector
Nitrogen: Thermal Conductivity detector（TCD）
Hydrogen: Non dispersive Infrared detector (as H2O)
Measurement range*:
Oxygen: 0-5%, Nitrogen: 0-3%, Hydrogen: 0-0.25%
*Up to 100% wt is possible by decreasing the sample weight.
Sample weight: 1.0 ± 0.1g
Sensitivity(Minimum reading): Oxygen/Nitrogen/Hydrogen: 0.001 ppm.
Accuracy**(Repeatability)
Oxygen/Nitrogen
σn-1≦0.02 ppm or RSD≦0.5% whichever is larger (Reference gas)
σn-1≦0.3 ppm or RSD≦1.0% whichever is larger (Standard sample)
Hydrogen
σn-1≦0.04 ppm or RSD≦2% whichever is larger (Reference gas)
** Based on the sample weight 1.0 ± 0.1g and with automation functions described below
Display
1) Measurement result: LCD or printout
2) Alarm message: LCD or printout
3) Flow sheet: LCD
Power of furnace
Inert gas fusion in impulse furnace
Enable to set the generating power 0 – 8.0 kw
Sample introduction: Dual sample/flux introduction mechanism
Automation functions: Auto cleaner, Crucible loader
Integration conditions:
Preset time integration
Integration up to reach comparator level
Preset time integration or integration up to reach comparator level, whichever is shorter
Sample ID: Enter up to 20 one-byte characters
Calibration
- One point or multi point calibration (Reference gas or standard samples)
- Calibration using previous analysis data
- Calibration curve correction function
Functions
- Display of real time extraction curve
- Analysis interruption
- Self diagnosis and alarm display
- Analysis of extraction curve (Superposition, difference etc analysis)
- Out put (RC-232C or TCP/IP)
Dimensions: 750mm(H)×785mm(D)×653mm(W)
Sample introduction is positioned at 650mm from table.
Weight: 230kg
On carrying, it is divided in two units (Under 140kg/unit)
Computer: PC model operating OS Windows® XP(SP2) and beyond
Power
Main unit: AC200/220/230/240V ± 10%
Auto cleaner: AC100V (Step-down transformer)
Frequency: 50/60 ± 1Hz
Electric power consumption
Main unit:12kVA (MAX)
Auto cleaner: 1.5kVA (MAX)
Ground resistance: Less than 10Ω
Installation condition
Operation temperature: 5-40°C
Performance temperature: 5-35°C
Humidity: Maximal relative humidity 80％RH between 5-31℃, linearly decrease down to 50％RH between 31-40℃
Vibration: Duplex amplitude 20micron and less than 0.098m/S2 accelerations at frequency band
Required gas
He carrier gas: Purity greater than 99.995%, Pressure 0.35MPa
Stainless steel pipe(O.D.3mm) and suitable connecter fitting within 3m of unit
Dry air or N2 as operating gas: Pressure 0.45MPa
Nylon pipe (O.D.6mm) and suitable connecter fitting within 5m of unit
Cooling mechanism: Radiator unit (Separation type)
Electronic balance (Option)
Enable connection with electronic balance with 1-0.01mg minimum display
Optional automatic voltage regulator (AVR)
Capacity:15kVA
Weight: 130kg

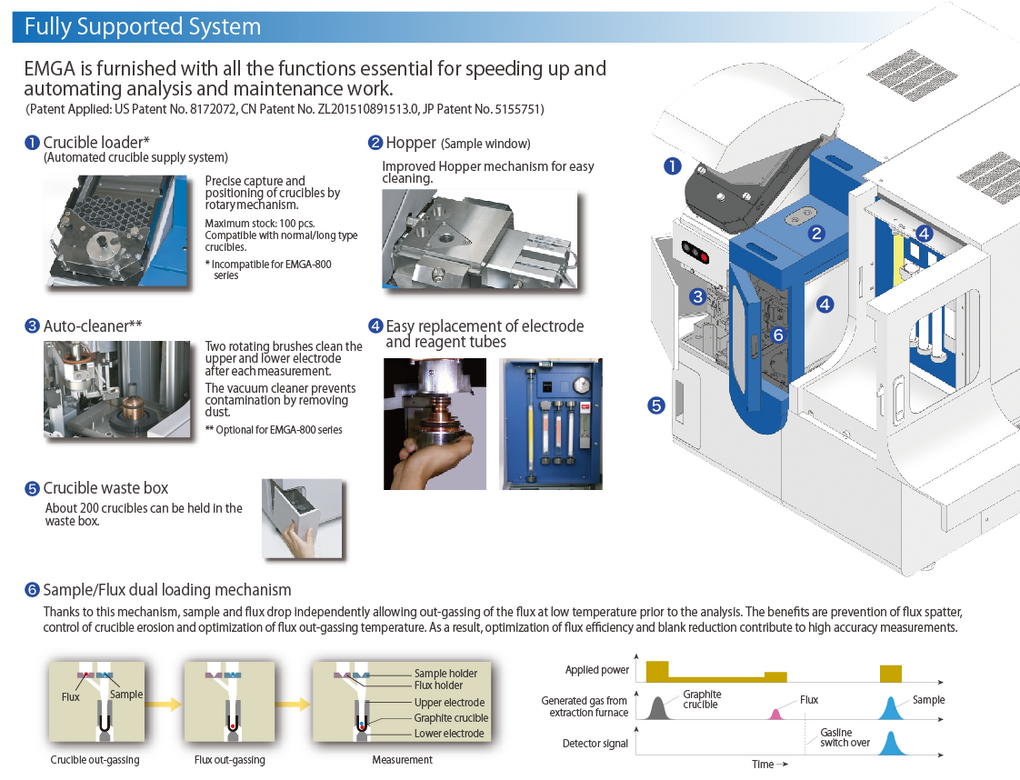

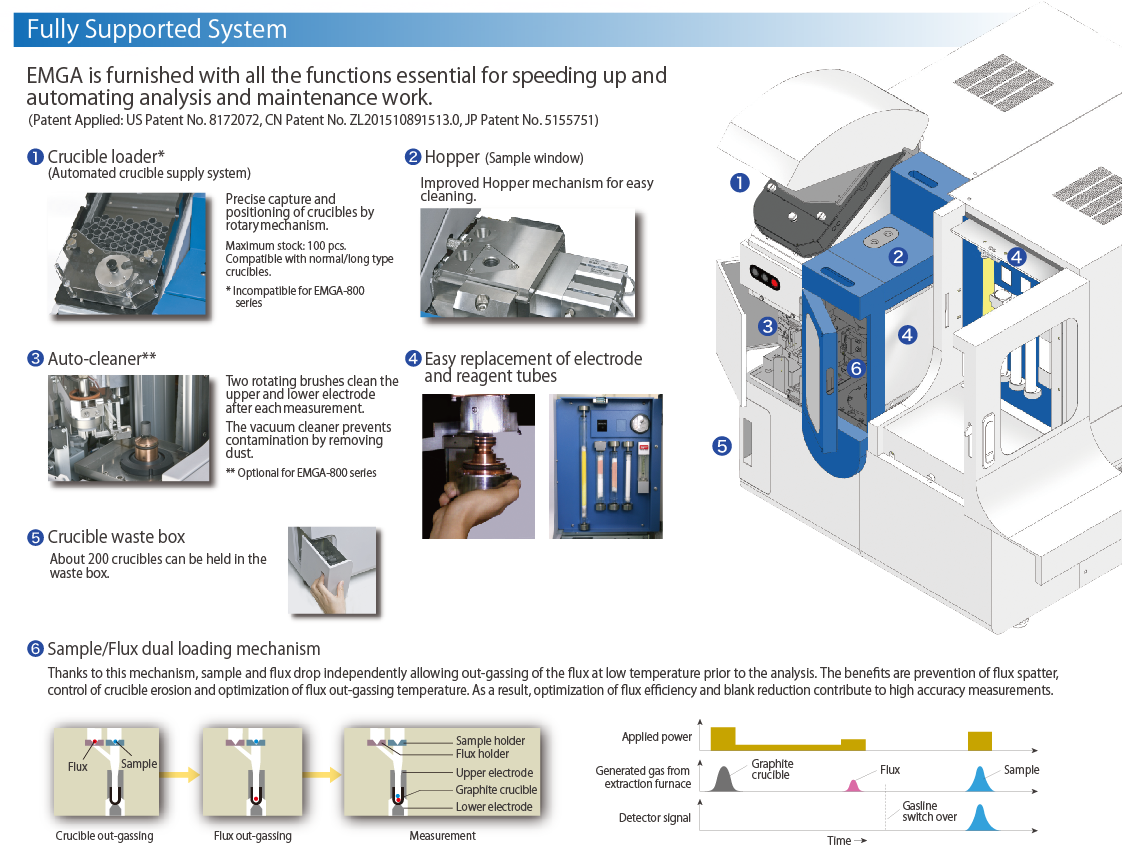

Fully Supported Accessories give simple operation
