Plasma Profiling TOFMS

PP-TOFMS-HORIBA

Ultra-Fast, Sensitive and High Resolution Depth Profiling technique



Ultra-Fast, Sensitive and High Resolution Depth Profiling technique

The new Plasma Profiling TOFMS addresses the needs of materials scientists across a wide range of application areas. PP-TOFMS provides fast elemental depth distribution of almost any material. The speed and ease of use of PP-TOFMS aims at reducing the optimization time of growth processes as many research scientists strive to reduce the time from discovery to applications of new materials.

The simultaneous full coverage of TOFMS available for each point of depth permits the detection of non suspected contamination. This is key for failure analysis and optimization of thin film processes that tend to no longer be based on ultra-high grade methods (i.e. ink jet printing…).

PP-TOFMS will be the ideal close-to-process tool for materials scientists:

  • To check on stoichiometry versus depth of layers ranging from nm to tens of microns
  • To determine doping depth distribution
  • Identify unsuspected contamination
  • Monitor interface composition and width
Segment: Scientific
Division: Elemental Analysis
Base product
Manufacturing Company: HORIBA France SAS

PP-TOFMS instrument is

  • Compact
  • Rapid
  • Easy to get hands on
  • General application in materials science
  • Multi-user







  • Glow discharge Plasma Source
  • Unique patented RF pulsing mode
  • No sample preparation, no sample transfer in UHV environment
  • Easy (flat Horizontal) and ergonomic sample positioning with laser help
  • High sample tolerance size from 0.7 cm to 30 cm
  • Standard 4 mm anode for 4 mm diameter crater
  • Available 2mm anode for 2 mm diameter crater
  • Oil free environment (Dry pump)
  • Easy removal and cleaning of source parts



TOF analyzer

  • Orthogonal extraction
  • High resolution reflectron (resolving power up to 5000 at 208 Th)
  • User friendly, ergonomic, fast hands on
  • Possibility to attenuate for four intense ions for high dynamics: user choice of ions and attenuation amplitude



Software

  • Fast automatic starting procedures
  • Real time display of depth profiles
  • One click semi-quantitative depth profile
  • Remote online capability
Battery Evaluation in Electrical Equipment
Battery Evaluation in Electrical Equipment

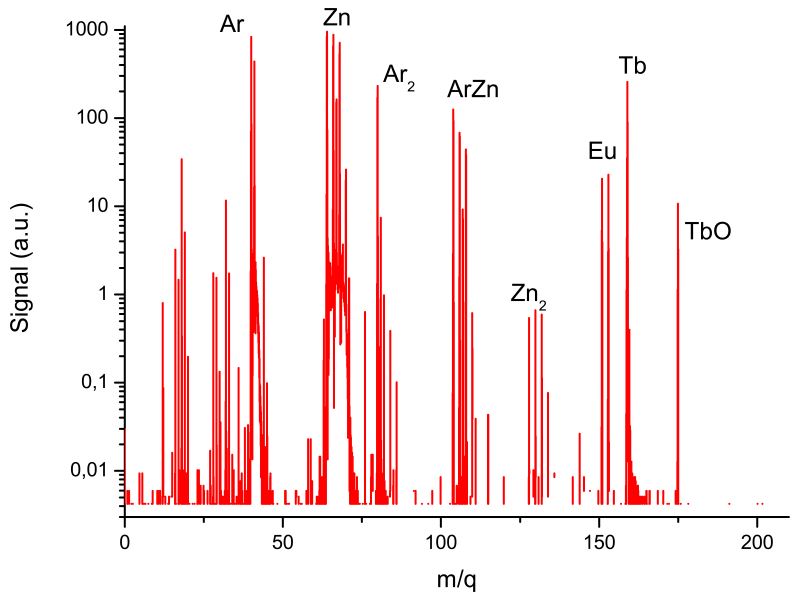

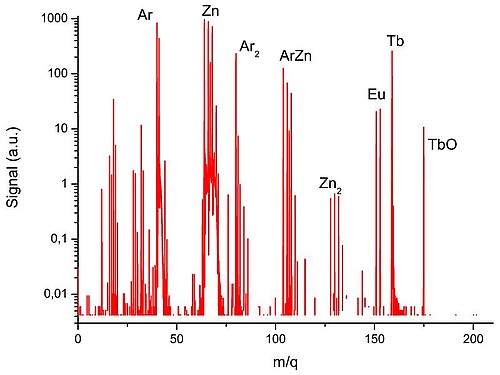

PP-TOFMS Depth Profiling of ZnO Thin Layers Co-doped with Rare Earths for Photonic Materials
PP-TOFMS Depth Profiling of ZnO Thin Layers Co-doped with Rare Earths for Photonic Materials
PP-TOFMS is a fast and reliable technique for depth profiling of rare earth doped ZnO thin films. Tb and Eu profiles are obtained with high sensitivity and high depth resolution. This type of information is typically provided by SIMS, RBS or depth profiling XPS but not as rapidly and readily and at a higher cost. Such profiles turn out to be powerful complementary information to understand photoluminescence data. This example extends to similar materials for photonics (lighting, display, solar energy industries) applications such as other wide bandgap semiconductors (SiC, GaN...), nitrides and oxynitrides layers, silicon nano-objects, glasses... doped with Yb, Y, Sm, Er, Nd, Pr, and Tm...
