LAQUAtwin NO3-11C/NO3-11S/NO3-11

Pocket Water Quality Meters

Your lab-in-a-pocket
HORIBA's unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

Segment: Scientific
Division: Water Quality
Manufacturing Company: HORIBA Advanced Techno Co., Ltd.

NO3 temp

Waterproof Microvolume Back light 2pt_cal



The only pocket meter that directly measures nitrate ion and nirate-nitrogen concentrations in 0.3ml sample (or 0.05ml sample with sampling sheet B). Unique sensor allows measurement of viscous liquids, solids, and even powder samples. No need for a beaker to calibrate your meter or measure a sample. Just place few drops of the standard or sample onto the flat sensor. This procedure saves you time and prevents wasting your precious sample.

  • Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
  • Up to 2 calibration points
  • Auto standard recognition
  • Changeable high and low calibration values
  • Multiplication compensation: 0.01 to 9.90
  • Temperature and mV display
  • Temperature calibration: 5 to 40.0 ºC
  • Auto hold / auto stable measurement
  • Auto power off: 30 mins.
  • Low battery indicator
  • IP67 Rating dust & waterproof
  • Replaceable sensor
  • 400 Hours battery life: continuous use without backlight
  • Material: ABS epoxy
  • Display: custom (monochrome) digital LCD with backlight
  • Operating conditions: 5 to 40 ºC, 85% or less relative humidity
  • Warranty: 2 years - meter, 6 months - sensor
  • Packed in handy carrying case
  • Supplied with accessories (see specifications for more details)
Model

NO3-11C

(for crops)

NO3-11S

(for soil)

NO3-11

(for general use)

Measurement PrincipleIon Selective Electrode
Minimum Sample Volume0.3ml (0.05ml with sampling sheet B)

Nitrate (NO3-) Measurement Range

6 to 9900 ppm (mg/L)

Nitrate-Nitrogen (NO3-N) Measurement Range

1.4 to 2200 ppm (mg/L)

0.7 to 1100 kg/10a

Resolution

6 to 99 ppm: 1 ppm

100 to 990 ppm: 10 ppm

1000 to 9900 ppm: 100 ppm

Accuracy± 10% of actual value
Calibration PointsUp to 2
Temperature Display0 to 50.0 ºC
DisplayCustom (monochrome) digital LCD with backlight
Operating Temperature5 to 40.0 ºC
Operating Humidity85% or less relative humidity (no condensation)
PowerCR2032 batteries (2)
Battery LifeApprox. 400 hours in continuous use without backlight
MaterialABS epoxy
Dimensions164 x 29 x 20 mm (excluding projections)
MassApprox. 55 g (including sensor and batteries)
Functions
  • Auto Standard Recognition
  • Changeable High & Low Calibration Values
  • Temperature Calibration
  • Multiplication Compensation
  • Auto Hold / Auto Stable Measurement
  • Switchable Backlight
  • Automatic Power Off (30mins)
  • Low Battery Indicator
  • IP67 Dust / Waterproof
  • Replaceable Sensor
Accessories

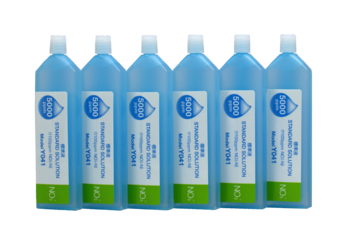

  • 300 & 5000ppm nitrate standards

  • 30 & 300ppm nitrate standards

  • 150 & 2000ppm nitrate standards

  • 2 x CR2032 batteries
  • dropper
  • storage case
  • instruction & quick manuals
  • sampling sheet B
 1005
Quick Nutrient Analysis in Strawberry Production
Quick Nutrient Analysis in Strawberry Production
Determination of Nutrient Concentrations in Soil Solution and Tomato Plant Sap
Determination of Nutrient Concentrations in Soil Solution and Tomato Plant Sap
Soil Nitrate Measurement for Determination of Plant-Available Nitrogen
Soil Nitrate Measurement for Determination of Plant-Available Nitrogen
Rapid In-Field Determination of Nitrogen in Onions
Rapid In-Field Determination of Nitrogen in Onions
Nitrate Measurement in Hybrid Sudangrass and Pearl Millet Hays
Nitrate Measurement in Hybrid Sudangrass and Pearl Millet Hays
Determining the nitrate concentrations of sudangrass and pearl millet before feeding them to livestock prevents nitrate toxicity.
