Battery

The battery market has grown dramatically since the first commercial introduction of automotive applications in the early 90’s, as well as increased demands for other electronic devices. Difficult issues, such as increasing capacity needs, safety, and longevity as well as the demands for weight reduction and charge times all need to be addressed.  Every stage of the manufacturing process needs to be understood and controlled in order to maintain competitiveness and profitability. From any single component (cathode, anode, separator and electrolyte) to full pack, the scientific fields and technologies involved require fast and innovative characterization tools.

Advanced materials research considers study of new material as well as their exploration at material level. Applied research will conciliate needs of industrialization through optimization of cell chemistry, establishment of advanced processing technologies and life time improvement. Advanced batteries development finalizes the performance optimization and cost reduction. Batteries production requires fast, easy and accurate QC monitoring, which provides fast detection of defaults in safety and performances issues, along with fast decision making when default is suspected. This will save time and money, while providing perfect traceability.

Causes of Deterioration

HORIBA Scientific Analyzers


  • Crystallinity and crystal structural change based on Li-ion insertion and removal

Raman Spectroscopy

  • Reactivity influence by particle size

Particle Distribution Analyzer

  • Oxygen generation in high-temperature environment

Oxygen Analyzer

  • Elution of manganese ions

ICP-OES

  • Li Stoichiometry anomaly, deficient oxygen, degradation with charge/discharge cycle, surface oxidation, corrosion evaluation

GD-OES

  • Foreign material incorporation, moisture absorption, oxidation into active materials


X-ray Fluorescence Analyzer


  • Uneven distribution and gaps in active material

X-ray Fluorescence Analyzer



Causes of Deterioration

HORIBA Scientific Analyzers


  • Crystallinity evaluation of carbons by insert and desorption Lithium-ion

Raman Spectroscopy

  • O reactivity influence by particle size

Particle Distribution Analyzer

  • Hyporeactivity by formulation of Seprator Electrolyte Interface (SEI)

GD-OES

  • Foreign material incorporation, moisture absorption, oxidation into active materials


X-ray Fluorescence Analyzer


  • Uneven distribution and gaps in active material

X-ray Fluorescence Analyzer

Causes of Deterioration

HORIBA Scientific Analyzers


  • Abnormal value of pH

pH, Particle Distribution Analyzer

  • Uneven size of active materials in the process of slurry in anode

Particle Distribution Analyzer

  • C identification type

Raman Microscopy

Causes of Deterioration

HORIBA Scientific Analyzers


  • Separator damage by metallic foreign materials (dusting, burr)


X-ray Fluorescence Analyzer


  • O reactivity with C based material, porosity of membrane

Oxygen Analyzer

Causes of Deterioration

HORIBA Scientific Analyzers


  • Monitor the reaction of LiPON with air, homogeneity of the coating thickness

Spectroscopic Ellipsometry

Browse Applications

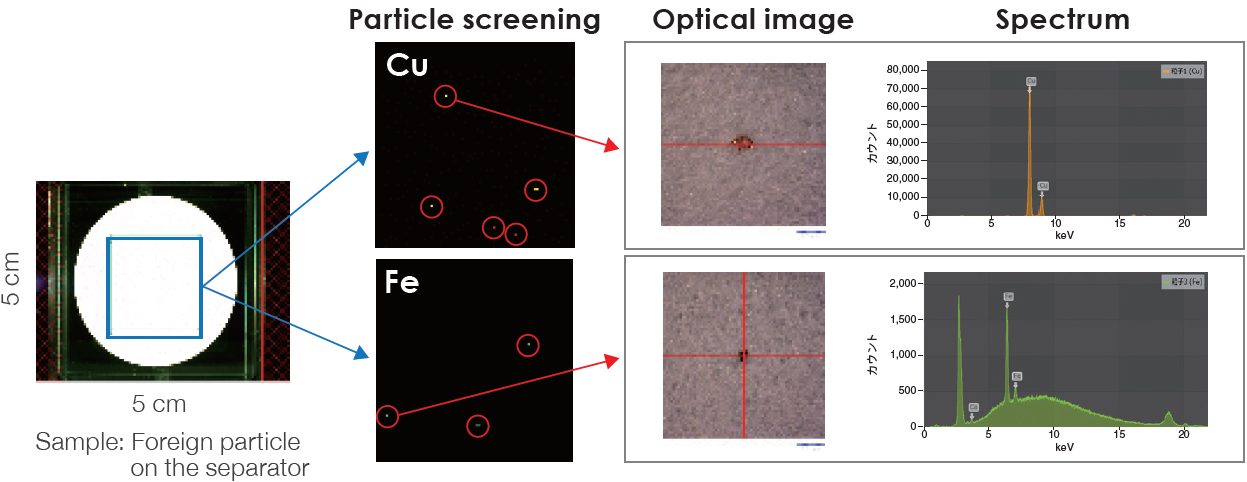

Particle Analysis of Film and Battery
The XGT-9000 can detect and determine the composition of foreign particles, and therefore track the source of contamination.
Laser Diffraction Analysis of Lithium Ion Battery Material
Battery technology is improving, keeping up with the demand for better power storage. Improved performance requires greater control of the materials used and their physical properties including the particle size distribution.
Microscopic Measurement of Diffusion

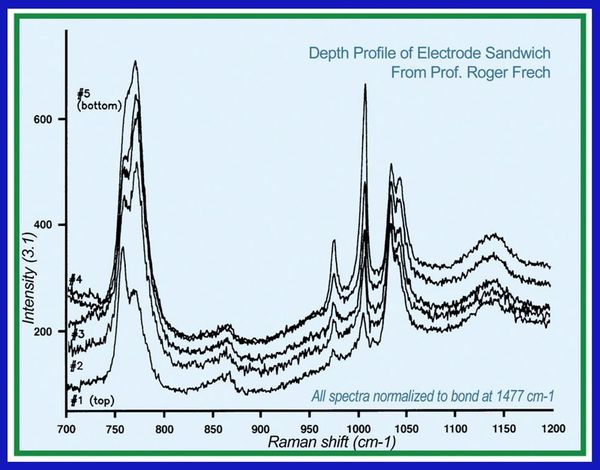

Spectra taken at different depths within the polymer layer with normalized spectra.
In order to engineer materials with controlled diffusive properties, we need to be able to measure the diffusive process in situ. Ideally, we would like a technique that provides molecular information with resolution on a microscopic scale, that is non destructive of the samples, and can be set up and used on a laboratory bench top with a minimum of time and effort involved in sample preparation. Raman microprobe spectroscopy is an ideal candidate for this type of studies. Use of visible light combined with a confocal microscope provides a probe with spatial resolution of a micron or better, and coupling of such a microscope to a modern Raman spectrometer equipped with holographic notch filters and CCD multi channel detectors allows rapid acquisition of Raman spectra which can be correlated with the chemical state of the species and its physical environment.
Features and Benefits of Pulsed RF GD OES for the Characterisation of Electrodes of Li-ion Batteries.

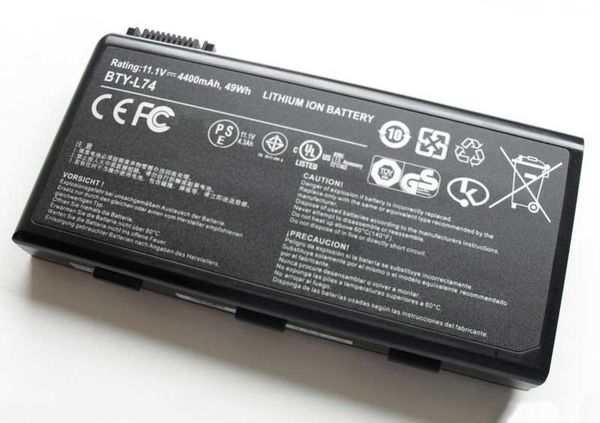

A Li-ion battery.
A Li-ion battery is a rechargeable battery in which lithium ions move between the anode and the cathode creating an electricity flow. Whether you study new electrodes or coatings behaviors, charge and discharge processes, process controls, or perform comparative studies for Li-ion batteries, Pulsed RF Glow Discharge Optical Emission Spectrometry is a valuable companion tool.
Raman Spectroscopy Applied to the Lithium-ion Battery Analysis
Raman image LiCoO2 cathode after a cycling process.
The application note explains how the Raman Spectroscopy can be helpful in the analysis of cathodes and anodes in Li-ion batteries. Today’s state of art of technology requires more reliable, more efficient and powerful energy sources. Lithium-ion batteries are thus of high interest. Raman spectroscopy adapts to the different stages of life of these batteries, such as the characterization of new materials for more flexible systems, failure analysis; but also more standard analysis of used material during charge/discharge process, including structural and electronic properties, and even robust, automated QC tests.
Battery Evaluation in Electrical Equipment
