EMIA-20XC High-Concentration Carbon Analyzer

Highly Repeatable Carbon Analysis for Precise Control of High-Carbon Materials

Precise control of carbon concentration is critical in the production of tungsten carbide and other carbon-containing powders.
The EMIA-20XC from EMIA-Expert series is designed for the precise analysis of high-carbon-content materials, delivering accurate, highly repeatable results and reliable long-term reproducibility. Its dedicated XC detection unit, optimized for high-carbon applications, minimizes the effects of atmospheric pressure and temperature fluctuations, enabling consistent measurements in a short time. The built-in switching function also enables the analysis of carbon and sulfur at low-ppm concentrations, combining high-concentration carbon analysis with versatile carbon/sulfur measurement in a single system.

Main Features

RSD ≤ 0.15% and approximately 160 seconds in XC Mode

In XC Mode, the analyzer achieves a relative standard deviation (RSD) of ≤ 0.15% for high-carbon-content materials such as tungsten carbide. Results are displayed in approximately 160 seconds from measurement start.

2-in-1 Cemented Carbide Carbon and Inorganic Carbon /Sulfur Determination

By switching the modes, the EMIA-20XC supports both high-concentration carbon analysis and low-concentration carbon and sulfur analysis.

Optional autosampler is available.

Características
Especificações

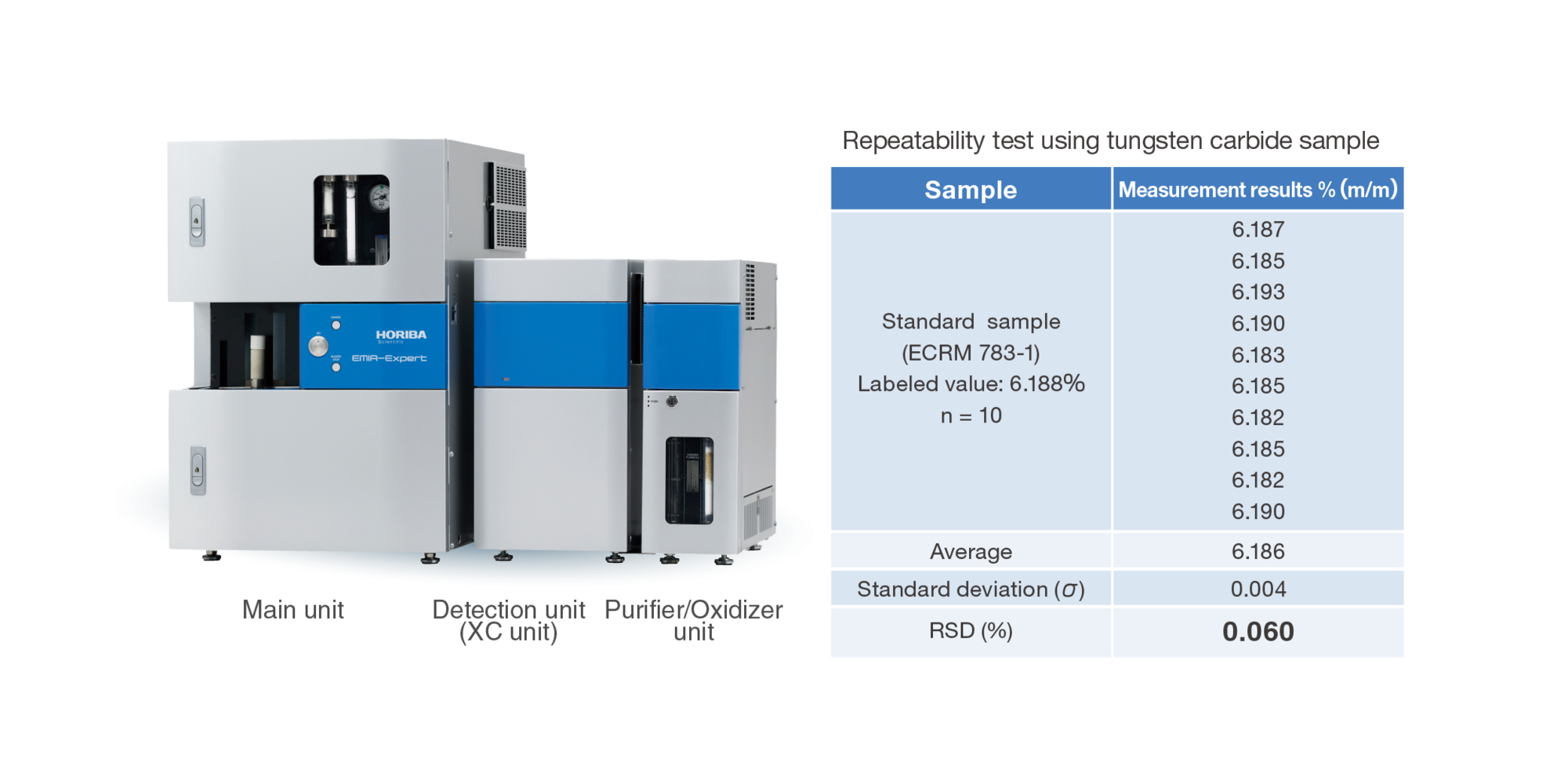

Proprietary Technology for High-Repeatability Measurement

The detection unit (XC unit), specialized for measuring high-carbon-content materials, minimizes the effects of atmospheric pressure and room temperature fluctuations, enabling high-repeatability measurements in a short time.
Relative standard deviation (RSD) ≤ 0.15%, demonstrating outstanding reproducibility, for high-carbon-content materials, such as tungsten carbide.
Approximately 160 seconds from measurement start to results display: high-repeatability measurement mode (XC mode).

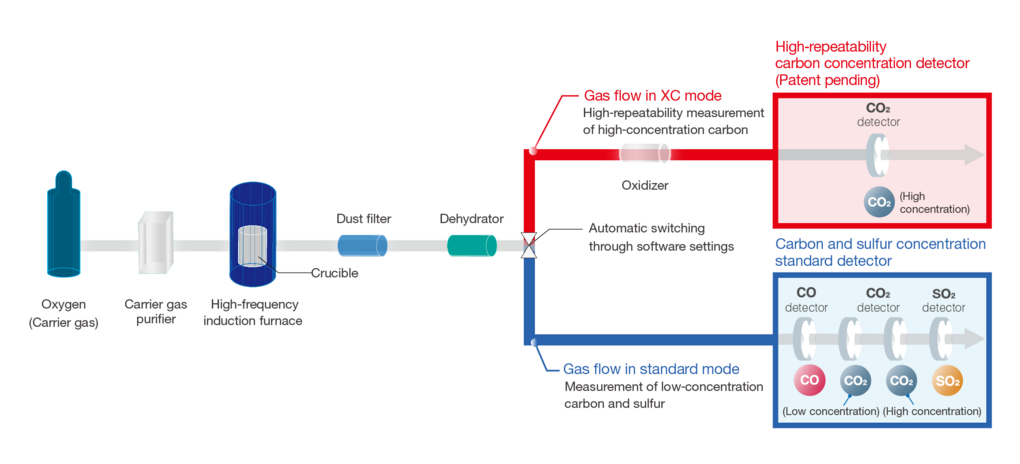

The Gas Flow

The EMIA-20XC enables switching between high-repeatability measurement of high-concentration carbon and measurement of low-concentration carbon and sulfur.

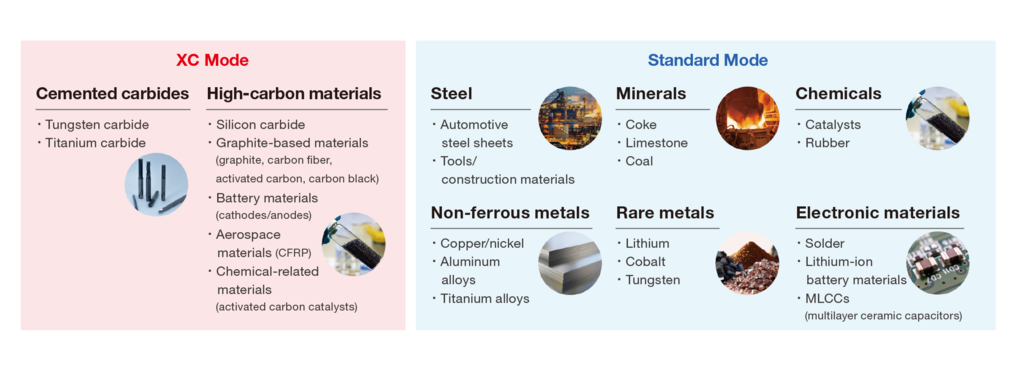

Applications*

*Application examples are based on representative evaluations conducted with EMIA-20XC and/or EMIA-Pro/Expert. Results and repeatability depend on sample composition, homogeneity, concentration, particle size, pretreatment, calibration, and other measurement conditions. The specified RSD 0.15% applies only under the specified measurement conditions and is not guaranteed for all sample types. Please contact HORIBA before purchase to confirm the feasibility of your application and recommended measurement conditions.

EMIA-Expert series: EMIA-20XC Specifications by Operating Mode
		XC Mode	Standard Mode
Measurement Principle		High-frequency induction furnace combustion – infrared absorption method
Sample Mass		Max 0.50 or less than 0.49 ± 0.01 g	Less than 1.00 ± 0.10 g
Measurement Time (Average)		Approx. 160 seconds	Approx. 60 seconds
Carbon	Measurement Range ^*2	1.0% - 20.0%	0.6 ppm - 10.0%
Carbon	Reproducibility ^*3	RSD ≤ 0.15%	σ ≤ 0.3 ppm (Sample less than 20 ppm), σ ≤ 1 ppm or RSD ≤ 0.5% (Sample more than 20 ppm)
Sulfur	Measurement Range ^*2	-	0.6 ppm - 1.0%
Sulfur	Reproducibility ^*3	-	σ ≤ 0.3 ppm (Sample less than 20 ppm), σ ≤ 1 ppm or RSD ≤ 0.75% (Sample more than 20 ppm)

Utility

Carrier Gas	Oxygen (Purity: 99.5% or higher, 0.30 - 0.33 MPa)
Operation Gas	Nitrogen (Purity: 99.5% or higher, 0.40 - 0.45 MPa)

Dimensions (W x D x H mm) and Mass (kg)

Main Unit	500 x 725 x 710 mm/approx. 134 kg^*4
Purifier/Oxidizer	160 x 560 x 512 mm/approx. 28 kg
XC Unit	260 x 560 x 513 mm/approx. 37 kg

*1 Varies depending on the sample, measurement conditions, and options.
*2 Maximum range is extended by reducing the sample mass.
*3 Guaranteed values apply and are limited to the following conditions: When using reliable standards and using official consumables (accelerators, crucible, reagents, others).
*4 Excludes protrusions on the rear panel.

Available Options

Auto Sampler

Up to 20 samples can be loaded. The system automatically places crucibles in the furnace and disposes of them after measurements. Measurements can also be manually interrupted when necessary.

Halogen Trap Unit

HT-03 Traps halogen derived from sample, allowing analysis with minimized influence.can be loaded. The system automatically places crucibles in the furnace and disposes of them after measurements.
