FTIR Exhaust Gas Analyzer Direct Measurement Type
FTX-ONE is a fast response and compact size FTIR analyzer for the simultaneous measurement of multiple components of engine exhaust gases.
The FTX-ONE offers a 5Hz sampling rate and simultaneously measure the concentrations of multiple components including NH3, CH4, and CO2, from (engine) direct exhaust gas using the Fourier Transform Infrared (FTIR) method in combination with multivariate analysis algorithm.

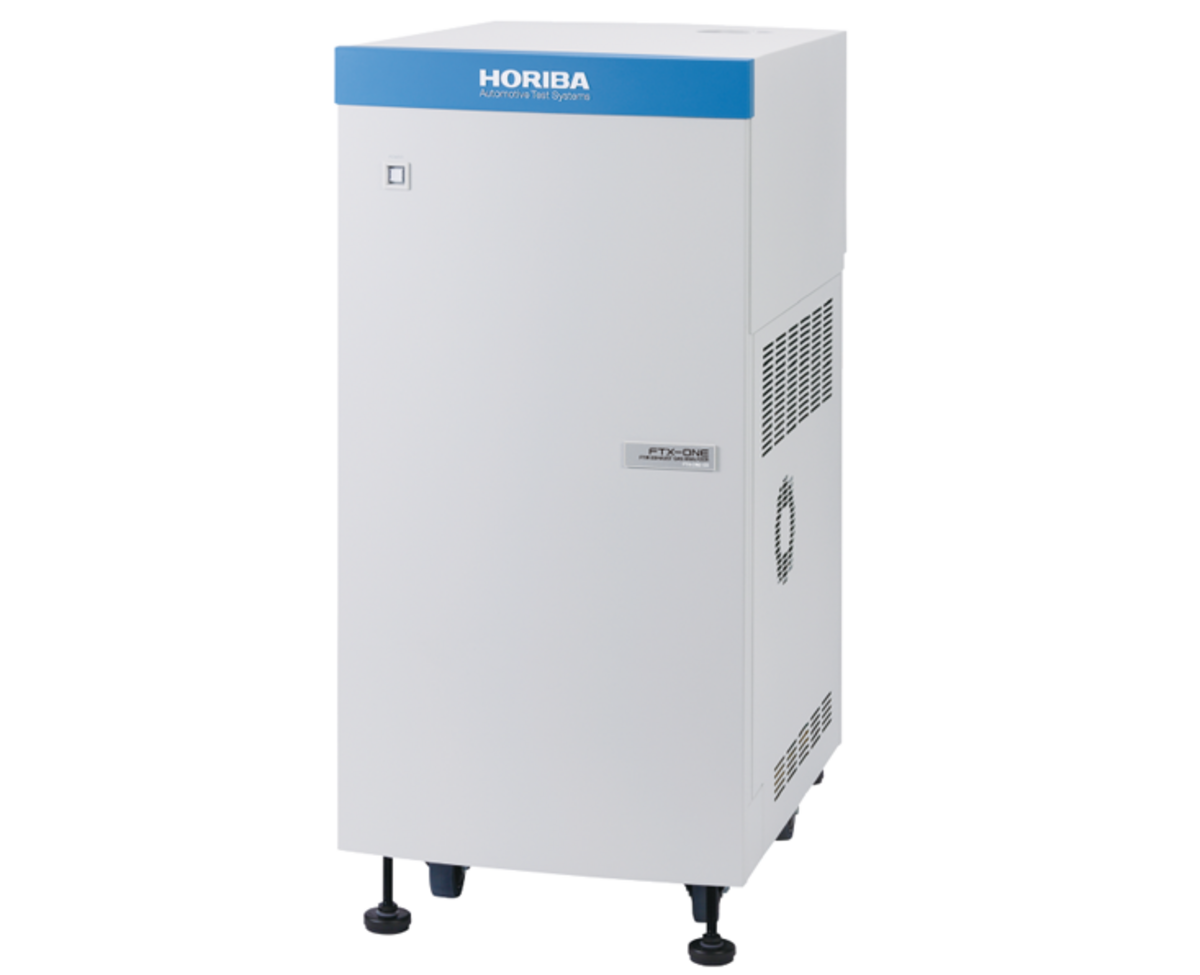

FTX-ONE-CSOffers a 5Hz sampling rate and simultaneously measure the concentrations of multiple components including NH3, CH4 and CO2, from (engine) direct exhaust gas using the Fourier Transform Infrared (FTIR) method in combination with multivariate analysis algorithm. FTX-ONE-RSFTX-ONE-RS is the rack type measurement system combined detector of FTX-ONE-CS and THC / O2 detector. The remote EGR measurement unit is available as an option. |
Latest Regulations
・Engine and Vehicle Development for Euro 7*: For R & D applications in anticipation of the EU's next LDV regulation (measurement of NH3, N2O, etc.)
・Measurement for EU Latest Regulation: Complaint to NH3 concentration regulation certification under EU HDV regulation (Euro VI) and NRMM regulation (Stage V).
* Please contact our sales staff for details
Evaluation of Catalyst and Fuel
Evaluation of aftertreatment systems such as urea SCR, gasoline three-way catalyst, and bioethanol fuel.
Fast Response
The world's smallest high performance optical cell* realizes a fast response time of about 1.5 seconds** even for NH3, which is difficult to measure.
Low Sampling Flow Rate
Achieves low sampling flow rate sampling with the world's smallest high-performance optical cell* and enables measurement without affecting engine combustion or catalyst performance.
* According to our research in May 2018 ** Response speed T10-90 is about 1.5 sec on the calibration line
Compact Design (FTX-ONE-CS)
Approx. 1/2 the installation area and weight.* Improved freedom of layout and maintainability in the lab.
* At the size of the footprint
Fuel Consumption and A/F (FTX-ONE-RS)
Simultaneous measurement of THC and O2 enables correlation evaluation of fuel consumption, A/F, and emission trends of each component with a single unit.
FTX-ONE-CS | FTX-ONE-RS | |
---|---|---|
Measurement target | Exhaust gas from internal combustion engine (Direct measurement) | |
Target components*1 | Max. 28 components | Max. 28 components including THC, O2 |
Target components sets*2 | Gasoline / Diesel set CNG set Ethanol set | Gasoline / Diesel set CNG set Ethanol set |
Principle | Fourier Transform Infrared (FTIR) | Fourier Transform Infrared (FTIR) THC: Heated Flame Ionization Detection O2: Paramagnetic Detection |
Sampling line temperature | 113°C ± 6 °C or 191 °C ± 6 °C | 113°C ± 6 °C or 191 °C ± 6 °C |
Sampling gas flow rate | Approx. 3.5 L/min | Total Approx. 8 L/min |
Operating environment | Ambient temperature 5 - 40 °C Ambient humidity: less than 80 % relative humidity (non condensing) | Ambient temperature 5 - 35 °C Ambient humidity: less than 80 % relative humidity (non condensing) |
Power requirements*3 | Approx. 2.8 kVA as MAX., Approx. 2.2 kVA at stable state | Approx. 4.5 kVA as MAX., Approx. 3.5 kVA at stable state |
Dimensions*4 | 438(W) × 661(D) × 950(H) mm | 655(W) × 850(D) × 1970(H) mm |
Mass*4 | Approx.150 kg | Approx. 430 kg |
*1:Select when ordering from the “Measuring Components and Ranges” table
*2:Standard combination of components and ranges, specified at time of order
*3:With heated filter, heated hose (CS: 15 m, RS: 12 m) and THC/O2 analyzer (only RS)
*4:Excluding protrusions
Components | Gasoline / Diesel |
---|---|
CO | 0-200ppm 0-1000ppm 0-5000ppm 0-2 vol% 0-10 vol% |
CO2 | 0-1 vol% 0-5 vol% 0-20 vol% |
NO | 0-200ppm 0-1000ppm 0-5000ppm |
NO2 | 0-200ppm |
N2O | 0-200ppm |
H2O | 0-24 vol% |
NH3 | 0-100ppm 0-1000ppm |
SO2 | 0-200ppm |
HCHO*2 | 0-500ppm |
HCOOH | 0-100ppm |
CH4 | 0-500ppm |
C2H4 | 0-500ppm |
C2H6 | 0-200ppm |
C3H6 | 0-200ppm |
1,3-C4H6 | 0-200ppm |
iso-C4H8 | 0-200ppm |
C6H6 | 0-500ppm |
C7H8 | 0-500ppm |
NOx / HC sum | Sum |
THC (RS only) | 0-10 ppmC - 60000 ppmC |
O2 (RS only) | 0-1 vol% - 25 vol% |
*1: The following are optional: Add other components (methanol, ethanol, acetaldehyde, MTBE, DME, acetone and acetic acid), to interchange other components and to change ranges. Please contact HORIBA for optional arrangements.
*2: Reference component
