TCSPC Lifetime Fluorometer
The DeltaPro has taken the complexity of time correlated single photon counting (TCSPC) and made it simple and affordable. Any lab can exploit the power of fluorescence dynamics using TCSPC. This system enables the seamless measurement of luminescence lifetimes from picoseconds to 1 second, using our DeltaHub timing electronics.
The DeltaPro takes advantage of interchangeable pulsed laser-diode and LED light-sources. The NanoLED and DeltaDiode range of sources cover discrete emission wavelengths from 250 nm to the near-IR and enables measurement of lifetimes from ps to µs. By simply adding a SpectraLED source to the system, lifetimes of µs to 1 second can be measured. Lifetimes ranging over 11 orders of magnitude measured with one compact and affordable system.

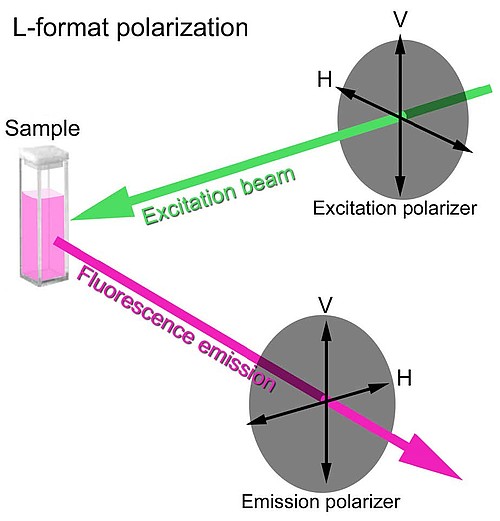

The DeltaPro system is modular. It can easily be upgraded to incorporate motorized devices, such as automated focusing and motorized polarizers through the F-Link spectrometer bus.
|Minimum Lifetime||25ps with laser diode source*|
|Shortest measurement time||1 millisecond*|
|Repetition rates||10kHz - 1MHz with NanoLED, 10kHz - 100MHz with DeltaDiode, 0.1Hz - 10kHz with SpectraLED|
|Diode controller||DeltaPro-NL: NanoLED and SpectraLED. |
DeltaPro-DD: DeltaDiode and SpectraLED
|Prompt FWHM||<200ps FWHM with PPD/TBX and laser diode|
|Time ranges||10ns - 11s (DeltaPro-DD)|
|Wavelength selection||Interchangeable filters (not included), monochromators optional|
|Detector response||250 - 650nm standard, 250 - 850nm and 300 - 900nm optional.|
|PC interface||USB 2.0. PC not included. Requires Windows XP or Windows 7, 32/64-bit English language ver.|
|System Footprint||75cm x 45cm x 25cm nominal excluding PC|
*dependent on sample and system configuration
