碳回收

有效利用二氧化碳和废塑料生产化学品、燃料、各种材料或转换成热能。
提高生产力和更好地管理使用能源有助于减少二氧化碳排放。分离和捕获燃烧过程中产生的二氧化碳也减少了释放到大气中的二氧化碳量。我们广泛的分析测量技术,如气体、材料分析技术和能源管理项目,也可以为这些过程做出贡献。
To produce high-quality CO2, it is important to measure and monitor CO2 and impurity gases in the separation, capture, and purification processes, as well as in pre and post treatment.
Pretreatment: Sulfur gas contained in the flue gas is removed by desulfurization. SO2 before and after desulfurization and CO2 after desulfurization must be measured and monitored.
Separation, capture, and purification: To optimize the separation and capturing process, it is necessary to control the capture rate of CO2 by amine in the absorption column. Therefore, gas measurement and monitoring of CO2 is important.
Post-processing: By measuring the solution with TOC analyzers after CO2 adsorption and after CO2 separation, the amount of CO2 absorbed, and the amount of CO2 separated can be confirmed. Exhaust gas measurement and monitoring are necessary to ensure that the unwanted gases after CO2 removal are treated and have reached a level that allows final emissions from the stack.
HORIBA Solutions >>
Various measurements and monitoring in the amine method
For concentration monitoring of various gases: Multi-Component Gas Analyzer VA-5000 Series, Stack Gas Analysis System ENDA-5000 Series
For measuring ammonia and amine concentrations: Trace Gas Analyzer APNA-370/CU-2
For simple check of amine solution: pH, Conductivity: Water Quality Analyzer H-1 Series
For detailed condition of amine solution: Process Raman System
For evaluation of CO2 separation and recovery from amine solutions: Automatic Total Organic Carbon (TOC) Analyzer T1 Series

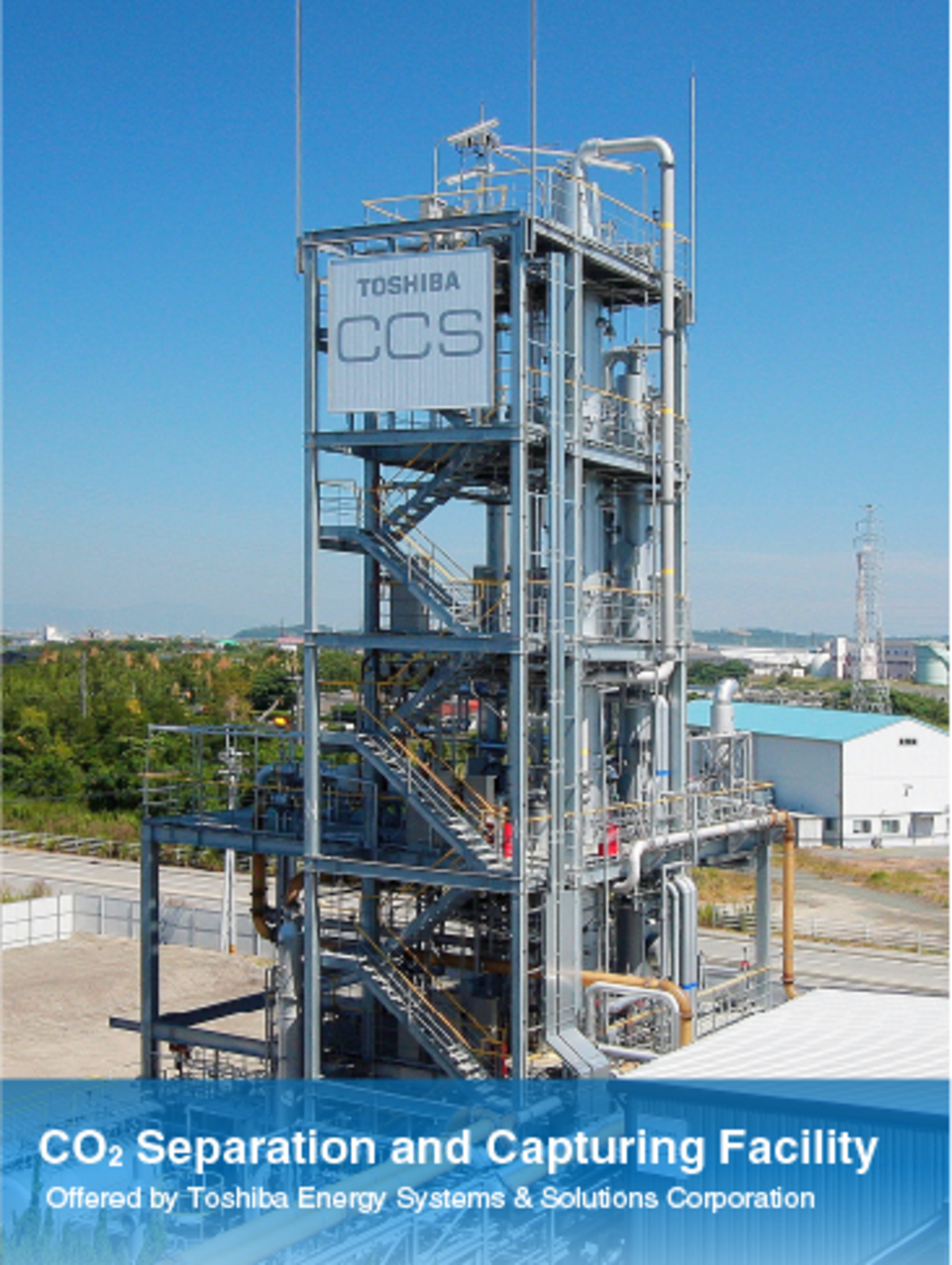

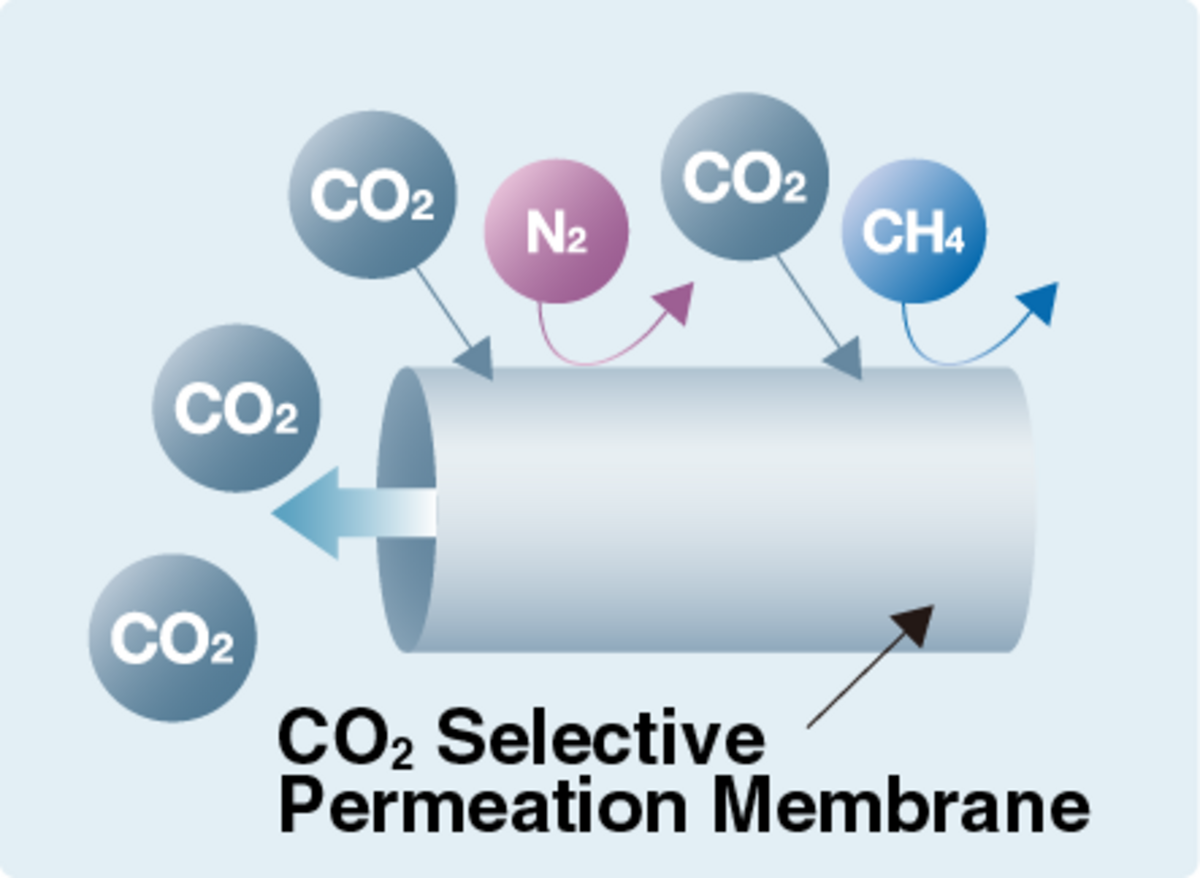

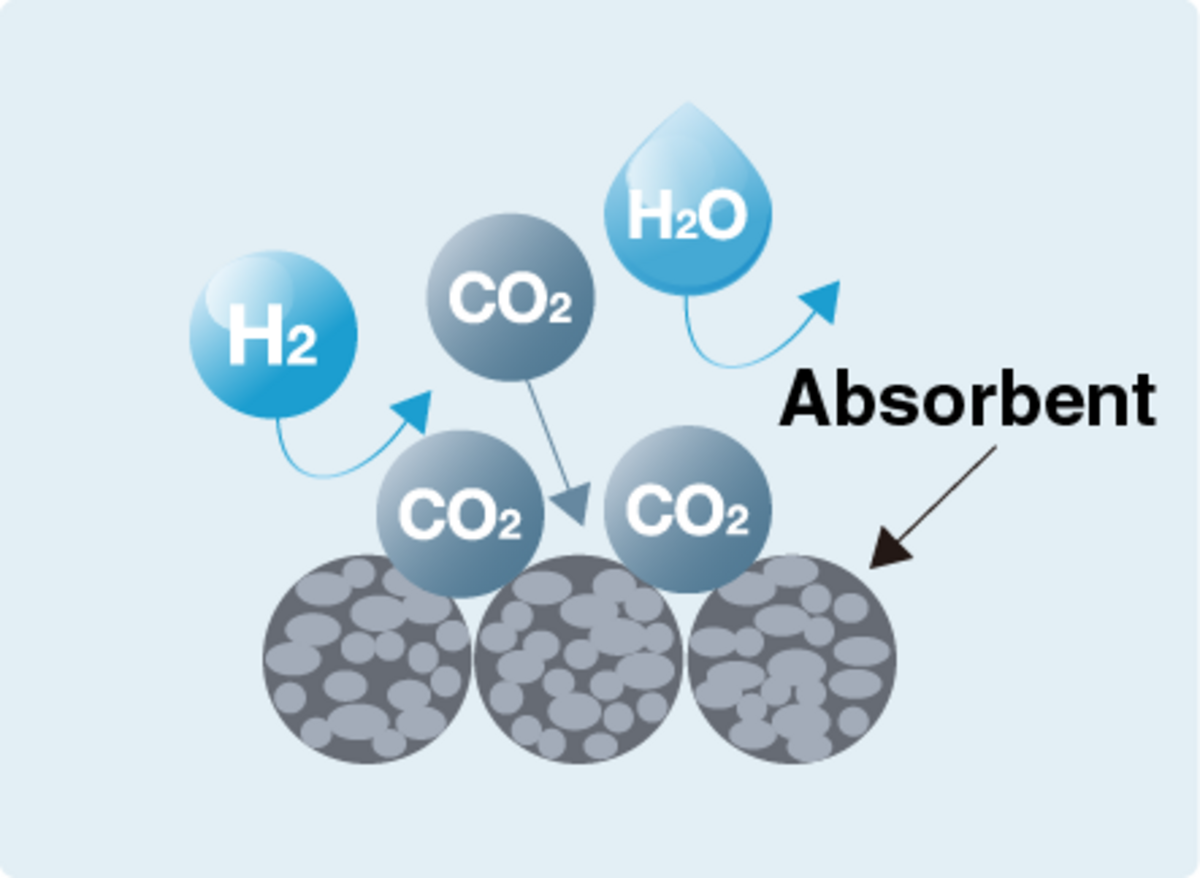

从燃烧过程产生的废气中分离和捕集二氧化碳,这是CCUS(二氧化碳捕集、利用和封存)的CC(二氧化碳捕集)部分。从成本和技术角度考虑,“化学吸收法”适用于火电厂,“物理吸附法”适用于化工厂,“膜分离法”适用于水泥厂和钢铁厂。
分离与捕集二氧化碳同样用于碳回收过程。详情请点击此处“碳回收解决方案”。

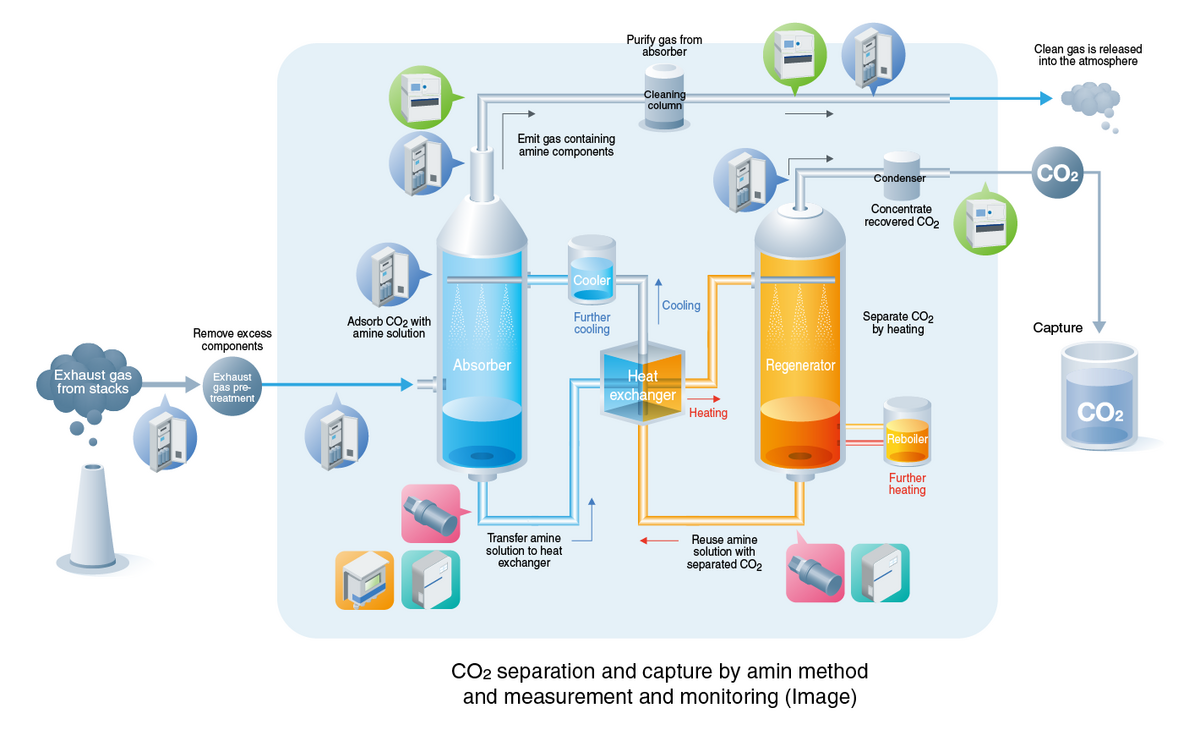

1. 化学吸收法 (胺溶液)
为了生产高质量的二氧化碳,在分离、捕集、净化以及前后处理二氧化碳的过程中测量和监测二氧化碳和杂质气体是很重要的。
前处理:一般通过脱硫去除烟气中的含硫气体。脱硫过程中需要对SO2气体进行测量和监测,脱硫后需要对CO2气体进行测量和监测。
分离、捕获和纯化:在化学吸收过程中,通过监测CO2气体浓度、胺溶液的pH值和电导率来掌握CO2是否与吸收柱中的胺溶液发生反应并被捕获是优化装置控制的必要条件。
后处理:利用TOC分析仪测量吸附后的溶液,可以确定吸附的CO2量。同时,也可以利用TOC分析仪测量CO2分离过程后的溶液本身来确定CO2的分离。此外,需要处理去除CO2后的多余气体,监测废气情况,以确认其达到最终可以从烟囱排放的水平。

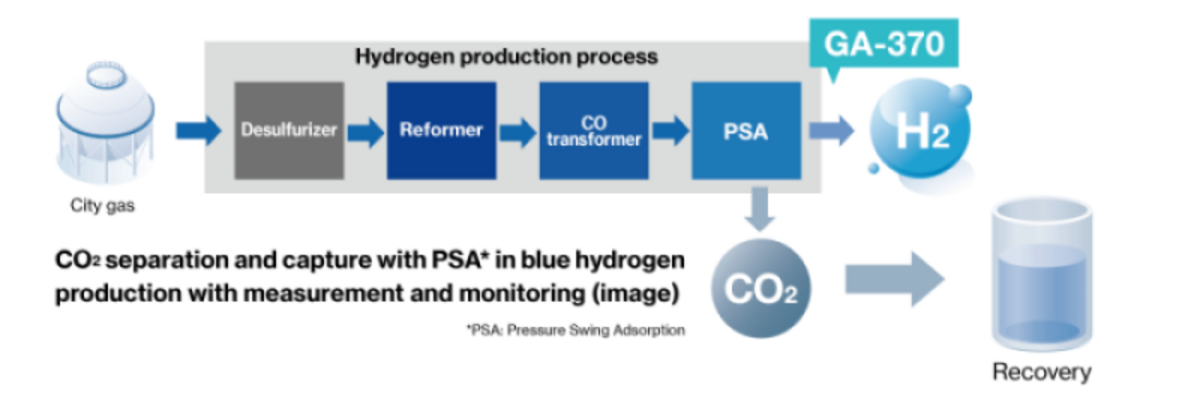

以煤和天然气为原料生产出来的氢气,由于生产过程中向大气排放二氧化碳,因此被称之为“灰氢”。将“灰氢”转换为“蓝氢”,需要在生产过程中分离与捕集二氧化碳。HORIBA提供氢气生产过程以及其他燃烧过程的二氧化碳分离和捕获的解决方案,为“蓝氢”生产做出贡献。
HORIBA 解决方案 >>
氢气生产过程中的氢气的品质管理: 痕量气体分析仪 GA-370
在生产过程中,除了最终产品外,还经常产生被称为“废气”的未利用气体。在整个过程中不能利用的废气在火堆中焚烧,导致二氧化碳排放增加。
通过使用高度精确的过程气体测量技术减少废气排放量并提高生产率,有助于节省生产材料和减少二氧化碳排放。
HORIBA 解决方案 >>
实时测量低浓度杂质气体,高灵敏度、响应快速
通过对高浓度原料气中含有的低浓度杂质气体(如甲烷、乙烷、乙炔等)进行高灵敏度、快速、实时的测量,并将结果反馈给生产控制系统,可以减少废气量。
为了实现碳中和,人们日益重视通过生命周期评估(LCA)等方法进行环境影响评估。而世界各国也正在采取各种措施努力向碳中和社会前进。在这种情况下,我们迫切需要通过有效利用能源来减少二氧化碳的排放。
有关生命周期评估(LCA)的更多详情, 请点击“环境影响评估(LCA和GHG协议)”查看。
HORIBA 的解决方案 >>
实验室和工厂能源利用的可视化 (能源管理系统)
为了实现碳中和,包括供应链在内的产品生命周期评估(LCA)中二氧化碳排放和能源使用的可视化与管理备受关注。详情请参阅"能源管理系统 (EMS)" 网页。

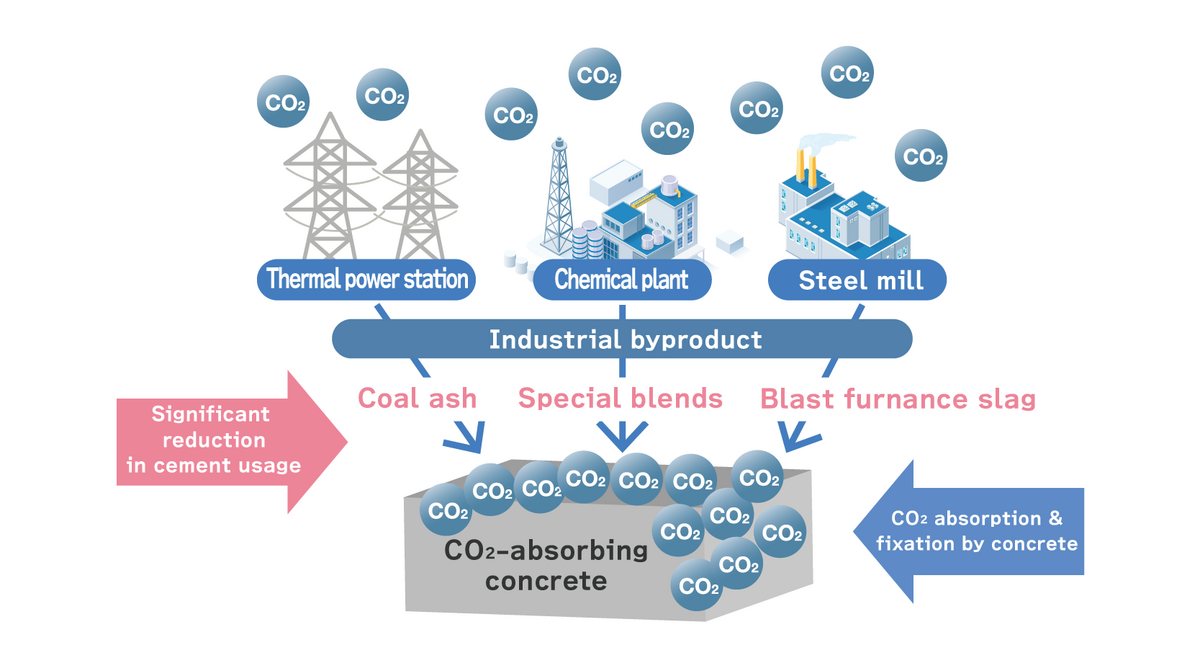

Since cement, the main raw material of concrete, emits a large amount of CO2 during its production process, efforts to achieve carbon neutrality have begun to combine the reduction of cement usage with the absorption and sequestration of CO2 by concrete.
To reduce the amount of cement used, industrial by-products (coal ash) and special admixtures are used as alternative raw materials to cement during concrete production. The special admixture absorbs and sequesters CO2 that is force-fed to the concrete during curing. The combination of the two is attracting attention for its ability to reduce CO2 emissions from concrete as a whole.
HORIBA Solution >>

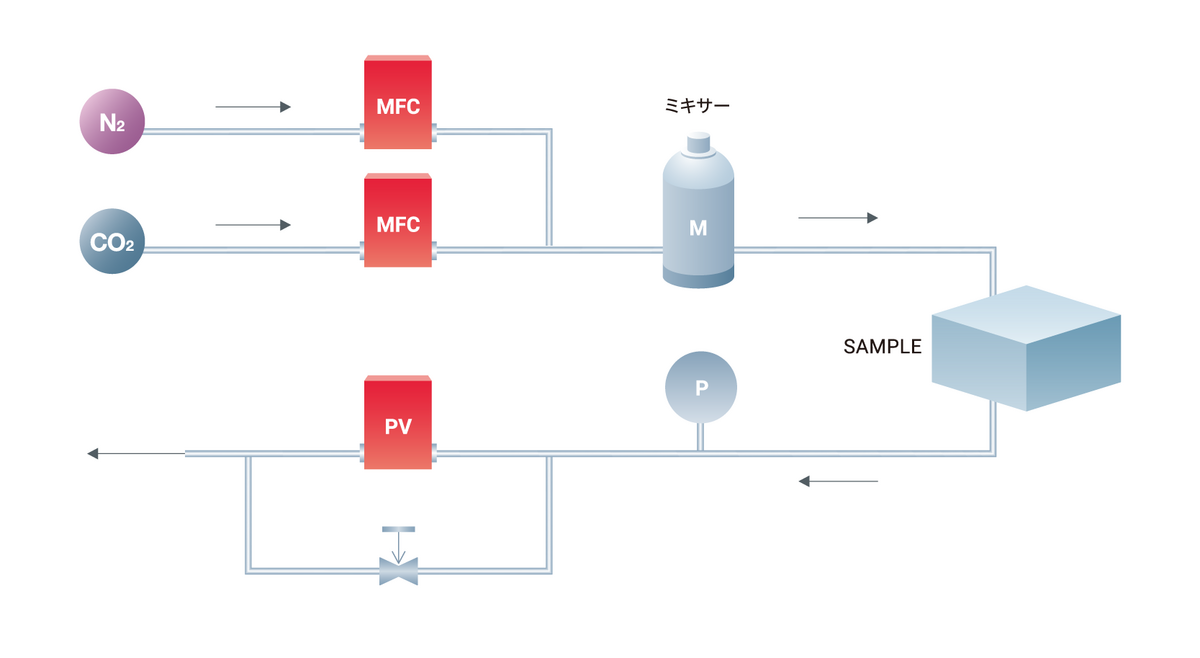

Evaluation of CO2 absorption and desorption in concrete
In CO2 adsorption evaluation tests, it is assumed that the amount of CO2 adsorbed in concrete is affected by changes in pressure, so precise control of pressure is required. HORIBA can perform everything from gas supply to the sample to pressure control of exhaust air.
我们长期致力于先进材料的分析和评估。您的样本由我们应用中心训练有素的成员测量,并以正式报告的形式呈现,包括方法,观察结果,结果和数据解释协助。
除了为分析仪器的选择提供咨询服务外,我们还利用作为分析仪器制造商的专业知识和技能,通过与客户和学术界联合研究,提供分析技术服务。
如您有任何疑问,请在此留下详细需求信息,我们将竭诚为您服务。
