氢气制造

对于氢气原料的气化和重整过程,HORIBA在全球范围内提供用于其过程监测的气体测量技术和仪器,以测量氢气的纯度和杂质,为工厂整合提供工程设计。我们还提供用于氢气分离、回收和净化过程的催化剂材料分析技术。

除了电解水之外,还有其他几种 "生产 "氢气的方法:
1)蒸汽重整:石油和天然气等化石燃料在高温下与水蒸气反应,产生含氢气体;
2)副产氢气:作为钢铁厂通过蒸煤生产焦炭的副产品,或从烧碱中产生;
3)生物质氢气:通过气化和改造生物质而产生。生物质是来自植物和动物等的有机资源。



内容

氢气生产中的挑战

为了更大量、更低成本地生产更高纯度的氢气,我们需要不断发展生产工艺技术,并通过监测整个生产过程和分析工艺中使用的催化剂和材料,来提高吸收剂的吸附和再生性能。

在制氢技术中,蒸汽重整作为生产大量氢气的最廉价和最有效的方法被广泛使用。然而,因为使用这种方法制氢会排放二氧化碳,它被称为 "灰氢"。为了实现碳中和,必须减少这种灰氢的比例。

在任何一个问题上,资源利用的关键词都是 "高效 "和 "低排放"。为了达成此目的,我们向客户提供用于制氢过程中气体监测的高精度测量解决方案。


我们独特的测量和分析技术

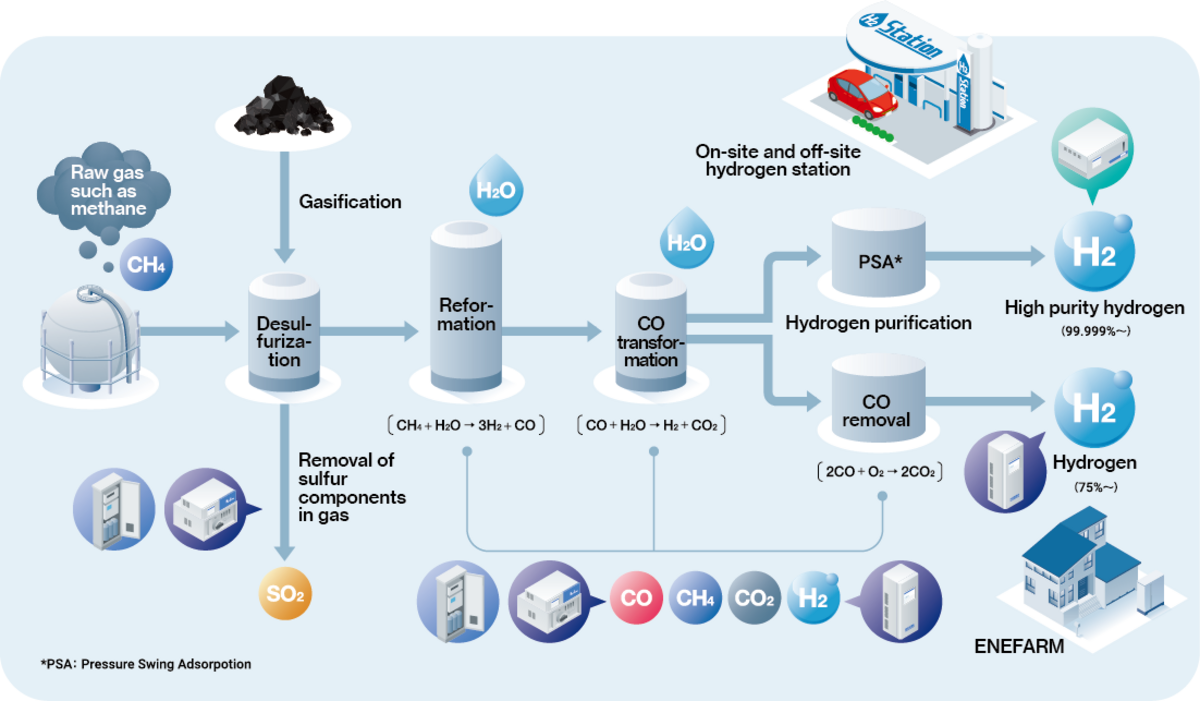

Producing hydrogen from fossil fuels

Measurement of gases produced in each step of the gray hydrogen production process contributes to the reduction of hydrogen production costs and the production of high-purity hydrogen.


HORIBA Solutions >>
Measuring and Monitoring the Concentration of Impurity Gases (for R&D): Multi-gas Analyzer VA-5000 Series
Measuring and monitoring impurity gas concentration (for plants): Stack Gas Analysis System ENDA-5000 Series
For high-purity hydrogen production, measuring and monitoring trace impurity gases: Trace Gas Monitor GA-370
Measuring and monitoring trace hydrogen gas concentration: All-purpose hydrogen Analyzer ( contact us for details )

Monitoring the concentration of impurity gases in high-purity hydrogen

Monitoring the concentration of impurity gases in high-purity hydrogen

监测高纯度氢气中杂质气体的浓度

各个行业的氢气生产都涉及气体分离、回收和净化过程,以去除其中的杂质气体(CO、CO2、CH4、SO2),然后提炼和生产高纯氢气,使之达到应用要求的水平。

为了确认氢气中的杂质气体已经符合应用标准,氢气中的微量气体需要被实时监测。

Monitoring degradation of PSA packing material (adsorbent)  Process monitoring of PSA and other processes during hydrogen purification

Monitoring degradation of PSA packing material (adsorbent)  Process monitoring of PSA and other processes during hydrogen purification

监测PSA吸附剂的降解情况

在氢气生产中,用于燃料电池的氢气需求呈上升趋势。其中,ISO 要求 FCEV 的氢气浓度须为99.97%或更高,且对每个杂质的浓度标准都有明确的规定。为了确保这一纯度,有必要使用变压吸附(PSA)方法来提高氢气纯度。

我们能够提供仪器测量氢气中的杂质浓度,这有助于监测吸附剂和其他用于PSA的材料的性能变化。

痕量气体分析仪 GA-370

监测脱硫过程中的二氧化硫气体

在利用化石燃料生产氢气的过程中,在进入分离、回收和精炼过程之前需要充分去除气体中的二氧化硫(SO2),以减少设备故障和性能下降,确保稳定生产。
脱硫装置是否稳定运行,可以通过测量和监测气体来确认。

多组分气体分析仪 VA-5000

烟气监测系统 ENDA-600ZG

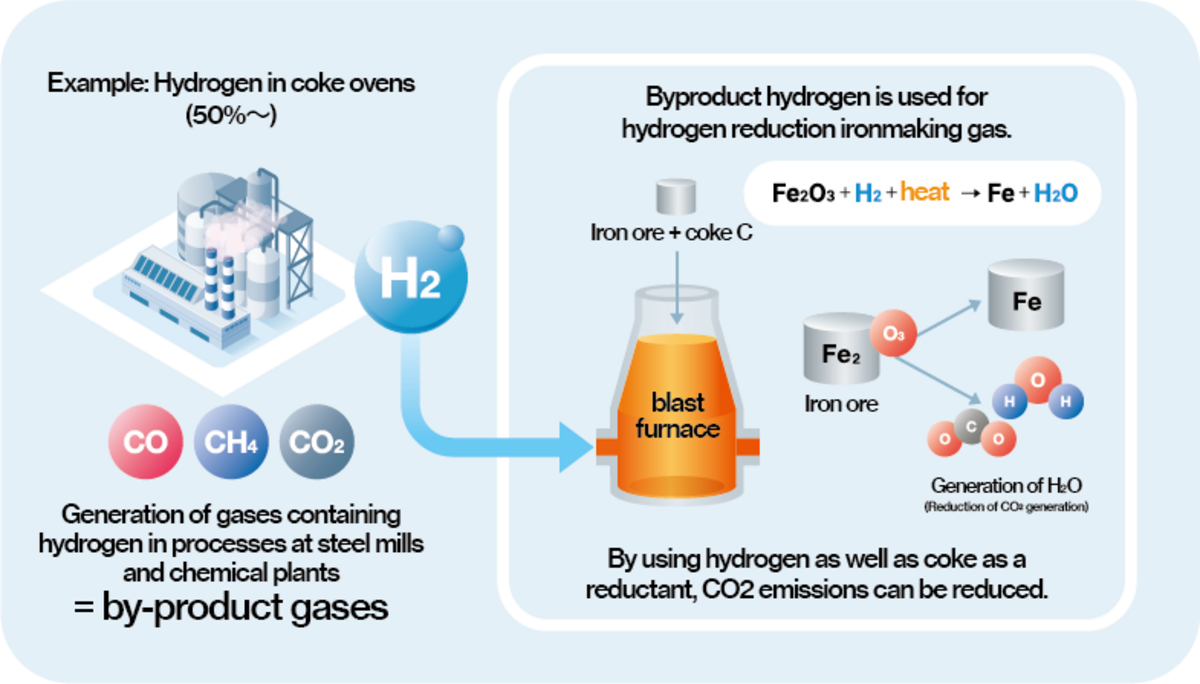

监测副产氢气的浓度

对氢气浓度进行测量和监测,以确保钢厂和其他设施产生的大量副产品气体中的氢气的有效运行。

防爆气体分析仪 51 系列
