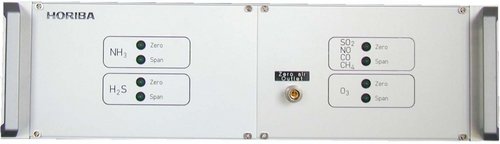

AFCU-360RC

Function Control Unit by Remote Control

The AFCU-360RC operates as an function control unit in combination with HORIBA APxA analyzers of one immission measuring station. The periodical, adjustable tests consisting of one zero point and one defined span point can be done for every component. To prepare fixed span gas concentrations the unit uses technologies like dilution, permeation, UV irradiation or Gas Phase Titration. The power supply and the temperature regulation for permeation and ozone generator happen from HORIBA APxA analyzers.



事业部: 过程与环境
产品分类: 空气质量
制造商: HORIBA (Austria) GmbH



  • Simultaneous operation of all span gas channels through parallel and independent layout possible
  • Mode selection operated by the HORIBA APxA analyzer, including LED indication of actual mode.
  • Modular Layout enables later upgrade with additional span gas channels.





Principle

Dilution, Permeation, UV irradiation, Gas Phase Titration, Mixed gas dilution

Application

Preparing Zero and Span gas for periodical checks (recommendation once a day)

Stage of extension

Up to 4 independent channels possible

Flow regulation

Pressure regulator / capillary

Repeatability

±3% from Setpoint

Permeation system
(NO2, SO2 NH3, H2S, BTX)

Permeation tube in a oven with heater and Pt 100 sensor. (Temperature: 50°C)
Temperature control from HORIBA APxA analyzer

Ozone generator by UV Irradiation

Intensity controlled mercury lamp in a oven with heater and PT 100 sensor. (Temperature: 70°C)
Temperature control from HORIBA APxA analyzer

Zero Air Supply

External

Operation

External from HORIBA APxA analyzer (24VDC)

Power

Power supply from HORIBA APxA analyzer

Dimensions

19"(W), 300mm(D), 3HE(H)

Mass

Depends on stage of extension (approx. 6kg)
