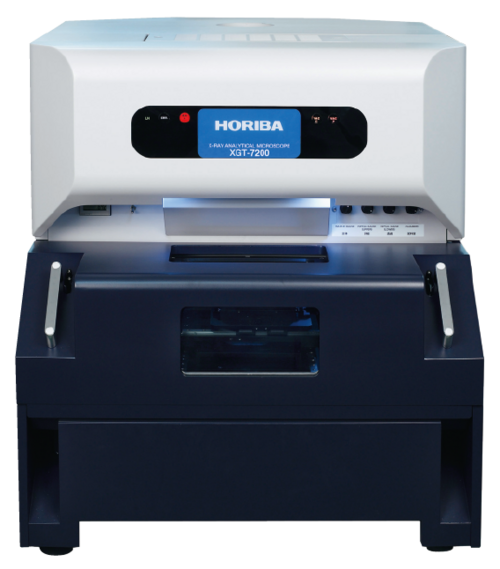

XGT-7200

X-ray Analytical Microscope

The XGT-7200 represents a completely new generation of XRF microscope, and leads the way to a new era of science. It offers a seamless merger between optical observation and elemental analysis functions, revolutionizing the world of micro-analysis and establishing micro-XRF as a routine tool for the research and analytical scientist.

Unique hardware features ensure the system offers versatility and flexibility for every measurement. A choice of two software controlled x-ray guide tubes with diameters ranging from a unique 10 µm through to 1.2 mm allow conditions to be optimised for a range of measurements, including both micro and macro. Similarly, with the unique Dual Vacuum Modes it is possible to switch within seconds between a high sensitivity full vacuum mode and a versatile localised vacuum mode. The latter maintains samples at atmospheric pressure whilst retaining sensitivity to all elements from sodium to uranium.

In any configuration the intelligent combination of optical cameras ensure that the precise analysis position can be quickly and simply located.

事业部: 科学仪器
制造商: HORIBA, Ltd.

Integrated Software for Data Acquisition and Analysis Sample Handling

Quickly proceed from a view of the entire sample to the selection of the analysis potision.

Intuitive "click and move" images from low magnification and high magnification cameras within the sample chamber, allow the analysis position or mapping area to be defined withing seconds.



Acquisition Functions

Single Point and Multi-point Analysis

Single point and automated multi-point analyses allow high quality spectra to be acquired from either a single position, or from a number of user defined points across the sample. Element peaks are automatically located and labelled, and quantitative analysis down to ppm levels can be carried out using the fundamental parameters method (FPM), FPM with single standard, and full standard sample calibration.Thickness calculations can also be made on nm and µm thick multi-layered structures.

  • Single Point
  • Grid Analysis
  • Line Analysis
  • Multi-Point Analysis
    • User Selected
    • Coordinate File
  • Import with Positional Referencing [option]
  • Hyperspectral Mapped Imaging



Mapping Analysis

Hyperspectral Mapping Analysis

The SmartMap imaging software records a full EDXRF spectrum at each and every pixel of the element image, enabling post-acquisition element image generation and comparison, and spectrum generation from user defined regions in the image with subsequent qualitative and quantitative characterisation.

Transmitted X-ray imaging provides additional insight into a sample’s structure, allowing features invisible by eye to become immediately apparent.

  • Element image display
    Element images to be displayed can be selected during and after acquisition. Images can aslo be generated from user defined spectral windows.

  • RGB Composite Image Generation
    Overlay elemental images to allow easy comparison of element distribution

  • Spectrum Generation
    Generate the average spectrum from a user defined region within an image.

  • Line Analysis
    Display multiple element intensity profiles across a defined region of an image.

  • Data Export
    Element images can be exported in data or image formats. The entire hyperspectral datacube can be exported in RAW format.



Spectrum Analysis

  • Peak auto-ID
  • Quantitative modes
    • FPM
    • FPM + Single Standard
    • Calibration
  • Spectrum overlay and compare
  • Multi-layer thickness
  • Spectrum matching

The unique features of the XGT-7200 have seen this innovative micro-XRF analyser widely embraced for a range of applications, including electronics, engine wear analysis, forensic science, geology, mineralogy, pharmaceutics, museums, metallurgy, biology, medicine and archaeology.

The flexible XGT-7200 micro-XRF system covers everything from macro analysis, for a general survey of a wide area, to the inspection of a specific micro area, with simultaneous XRF and transmission imaging. Its many features ensure high performance analysis with easy operation.

  • Highest spatial resolution

    The unique x-ray guide tube technology of HORIBA provides the highest spatial resolution micro-XRF analysis, with x-ray beam diameters down to 10 µm. The high intensity, ultra-narrow beams provided by the guide tubes allow fast, non-destructive analysis of microscopic features.

  • Transmission X-ray Mapped Imaging

    In combination with XRF imaging, the XGT-7200 allows transmitted X-ray images to be acquired. This can be used to perform internal structural analyses and identify regions of interest not visible to the eye. Scanning is done with a narrow perpendicular beam, resulting in clear penetrating images even for non-flat samples such as cylindrical parts.

  • Dual Vacuum Modes

    The XGT-7200 system offers the user unique Dual Vacuum Modes for sample analysis – switching between the two modes takes just a few seconds. In Full Vacuum Mode the entire sample chamber is subjected to vacuum conditions to ensure the ultimate sensitivity to light elements. In Partial Vacuum Mode the sample is maintained at atmospheric pressure whilst a vacuum is drawn around the detector and capillary optics. This mode is ideally suited for analysis of water containing samples such as biological tissue, and fragile archaeological/museum objects.

  • Complete range of sample sizes

    The accommodating sample chamber enables a wide range of samples to be analyzed, from a 10 µm spot analysis on a microscopic feature, to mapped analysis of areas as large as 10cm x 10cm.

  • Integrated Data Acquisition and Analysis Software

    Intuitive software allows easy control of instrument hardware, fast sample visualization and selection of measurement region, and full data analysis. Functions include automated peak identification, quantitative measurements, RGB composite image generation, line profile analysis.

XGT-7200 Specification

Elements: Na to U

X-ray tube: Rh target  / Tube voltage 50kV  / Tube current 1mA

Fluorescent X-ray detector: Peltier cooled Silicon Drift Detector (SDD)

Transmitted X-ray detector: Nai(Tl) scintilltor

X-ray guide tube: Mono capillary  10μm / 100μm with no filter

Optical image: Full sample optical image and coaxial magnification image

Sample stage size: XY : 100mm×100mm

Sample chamber: Vacuum chamber model/ Max 300mm×300mm×80mm in vacuum

Signal processing: Digital pulse processor ( INCA unit )

Qualitative analysis: Auto identification /  KLM marker /  Peak search / Compare spectrum

Quantitative analysis: Non standard FPM / Standard FPM / Standard file matching FPM /Calibration curve /   Multi layer FPM (Thickness gage) /Multi point analysis (Max5000) /  Multi point result send to Excel / XGT-5000 spectrum view

Mapping function: Transmitted X-ray image / Elemental image / Spectrum mapping /  Rectangle mapping / Generate spectrum / RGB composition / Scale maker / Line analysis

Other function: Possible to start the XGT-5200 software simultaneously.

Schematics

电气设备中的电池评估
电气设备中的电池评估
润滑油中磨损金属及添加剂元素分析
润滑油中磨损金属及添加剂元素分析
金属碎片和颗粒的显微XRF分析
金属碎片和颗粒的显微XRF分析

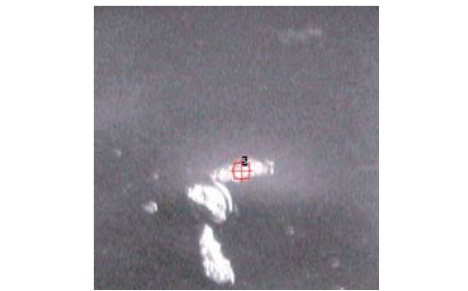

微观金属颗粒的快速分析是工程领域的重要应用(例如发动机磨损分析)。特定碎片的显微XRF扫描和点分析可以获得它们的化学成分。
